Electric Heating 36 Layers 110cm Trays 36m² Drying Machine DL-6CHZ-36

DL-6CHZ-36 dryer has 2 racks 36pcs 110cm trays, drying area 36m², can use electric heating, can customized gas heating.
  • Brand:

  • Product Details

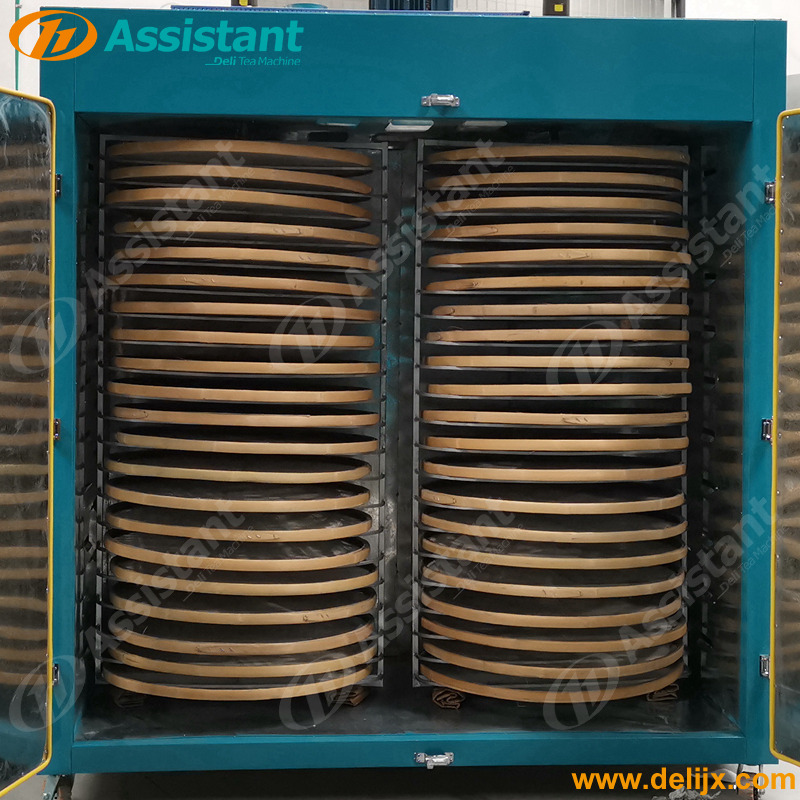

DL-6CHZ-36 tea leaf drying machine has 2 tray racks, each rack has 18 layers, total has 36pcs trays, drying area 36m², heating by electric heating wire, total power 36kw, maximum temperature can be 250℃.

Because the electric heating dryer is not affected by the external environment, season, climate, etc., and can work for several hours continuously, and can well guarantee the quality, color, appearance, fragrance of materials, and can meet the drying requirements of a variety of different materials, in addition to the drying effect of tea Drying operation, it can also be applied to seafood, meat, fruits and vegetables, seeds, herbs and grains .etc
Due to the unique air duct and rotary drying design, our machines are 30% more efficient than other companies’ dryer!

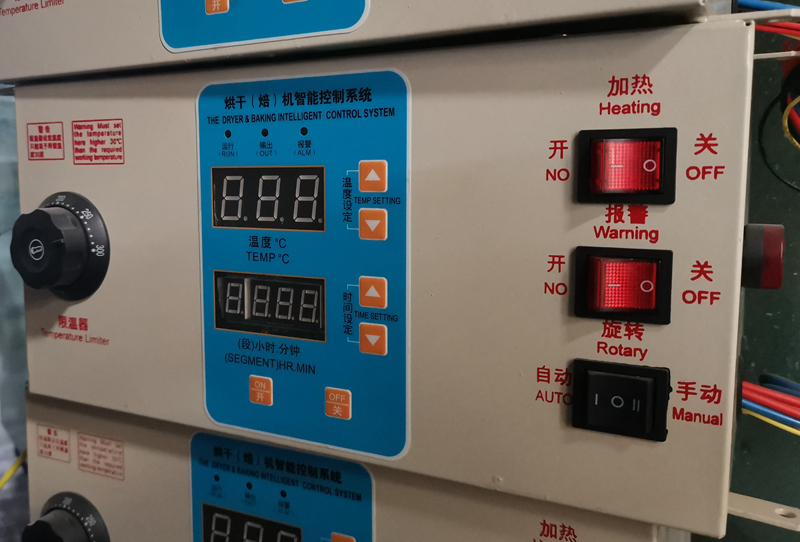

Integrated intelligent temperature and time control system, simple operation, precise control, automatic memory of last parameter.
Double temperature control design, prevent the materials from being damaged by too high temperature, automatically alarm and stop heating when heating time is over.

New environmental protection and heat preservation materials are adopted, and the door is equipped with heat preservation rubber strip, which makes the heat insulation more excellent and energy-saving.

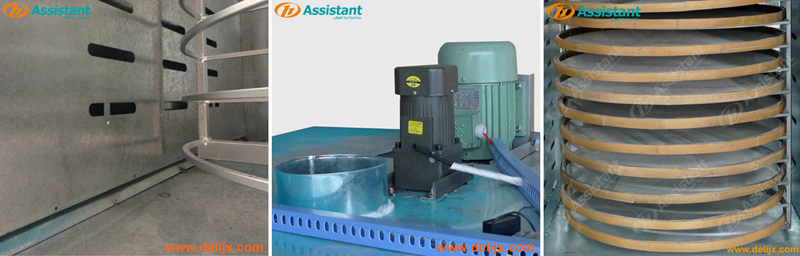

Rotary type trays, with unique hot air outlet design, and the use of pure copper core motor, to ensure the uniformity of drying, but also to ensure the appropriate air volume, hot and humid air can be quickly discharged from the inside of the machine, to ensure the color, quality and uniformity of tea or other food.

6CHZ-36 drying machine specification:

Model DL-6CHZ-36
Dimension 2600×1800×2900mm
Voltage 380/50 V/Hz
Heating element Electric heating wire
Total heating power 36 KW
Heating element group 6 Group
Fan motor Power 3 KW
Speed 1400 rpm
Rated voltage 380 V
Pallet rotary motor Power 80 W
Speed 1250 rpm
Rated voltage 220 V
Pallet rotary speed 6 rpm
Pallet type Round
Drying pallet diameter 110 cm
Effective drying area 36 m2
Number of drying pallet 36 pcs
Efficiency 410 kg/h

All of our electric heating rotary type drying machine:

Model Drying Area Tray Diameter Tray Quantity Voltage
DL-6CHZ-2 2  50 cm 10 pcs 110V / 220V / 380V
DL-6CHZ-4 4  70 cm 12 pcs 110V / 220V / 380V
DL-6CHZ-5 5  70 cm 14 pcs 110V / 220V / 380V
DL-6CHZ-6 6  70 cm 16 pcs 110V / 220V / 380V
DL-6CHZ-9 9  90 cm 16 pcs 110V / 220V / 380V
DL-6CHZ-12 12  110 cm 14 pcs 380V
DL-6CHZ-14 14  110 cm 16 pcs 380V
DL-6CHZ-18 18  120 cm 16 pcs 380V
DL-6CHZ-27 27  90 cm 42 pcs 380V
DL-6CHZ-36 36  110 cm 36 pcs 380V
For more details, please search the model in our website, or click the model number, or click here to view more dryers.

Customized service:

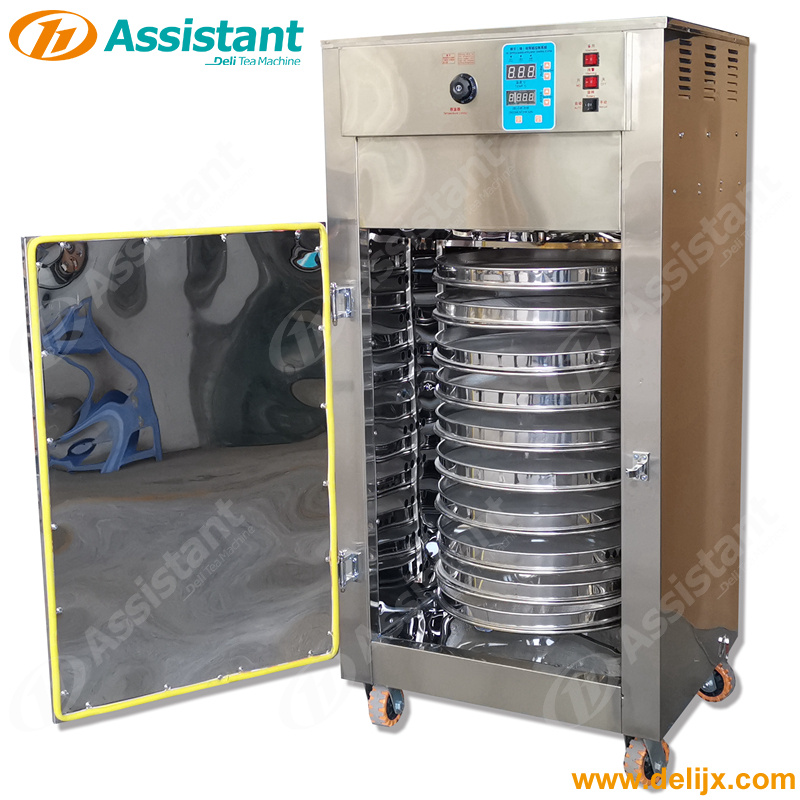

In order to meet the requirements of customers in different regions for food hygiene, we can provide stainless steel type machine:
Model 6CHZ-36 6CHZ-36B 6CHZ-36QB
Trays Bamboo trays Stainless steel Stainless steel
Tray Rack Galvanized steel Stainless steel Stainless steel
Inside Board Galvanized sheet Stainless steel Stainless steel
Outside Board Galvanized sheet Galvanized sheet Stainless steel
Control Box Galvanized sheet Galvanized sheet Stainless steel

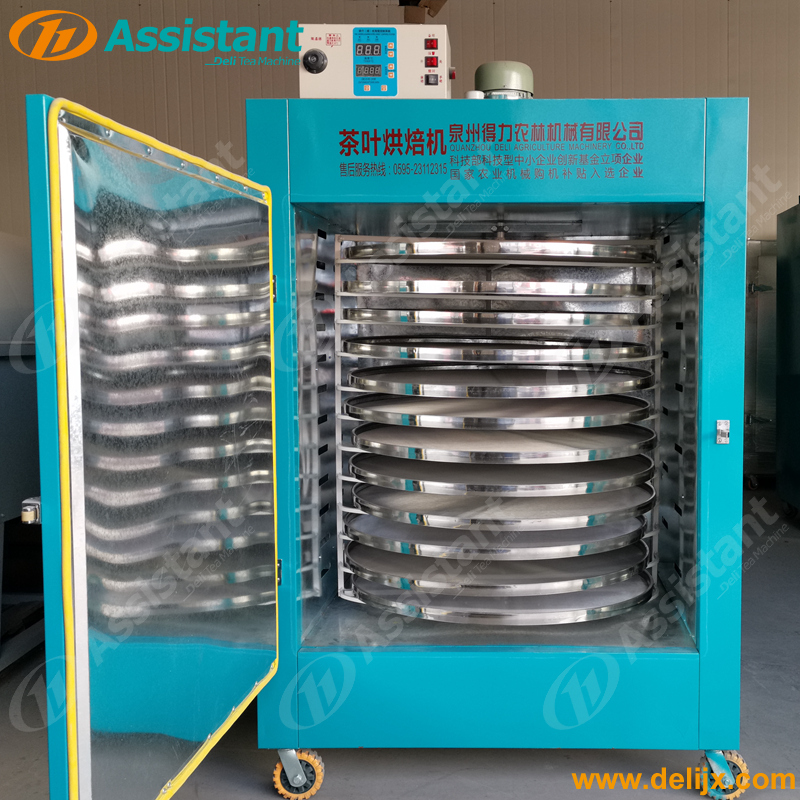

(The following photos may not 6CHZ-34 drying machine, for reference only.)

Normal Type Inside Stainless Steel All Stainless Steel
