Item NO.:
DL-6CY3-15Brand:
DELI ASSISTANTDimensions:
1710×760×1700 mmInput power:
380/50 V/HZPressing work stroke:
≥200 mmPressurization method:
HydraulicNumber of stations:
3Maximum pressure:
≥120 kNDriving Power:
3 kWMotor Speed:
1400 r/minRated Voltage:
380 V
| Description: |
Tea cake brick pressing machine can used for many kinds tea, such as puer tea, brick tea and other tea.
Application:
| Advantage: |
1.The integrated design, the appearance of the large enclosure, with the moving bottom wheel, the overall appearance is beautiful and practical;
2.The main structural steel plate of the whole machine adopts Q345B high-strength steel plate;
3.Stainless steel plates are used in contact with the materials to ensure hygiene compliance;
4.Fully automatic control system and pressure sensing device make operation easier.
| Parameter: |
DL-6CY315 tea cake brick pressing machine specification:
| Model | DL-6CY315 | |
| Dimensions (length × width × height) | 1710×760×1700 mm | |
| Input Power(voltage / frequency) | 380/50 V/HZ | |
| Pressing work stroke | ≥200 mm | |
| Pressurization method | Hydraulic | |
| Number of stations | 3 | |
| Maximum pressure | ≥120 kN | |
| Driving Power | 3 kW | |
| Motor Speed | 1400 r/min | |
| Rated Voltage | 380 V | |
| Details: |
 |
 |
| Packing | Put tea in mold |
 |
 |
| Pressing | Finished |

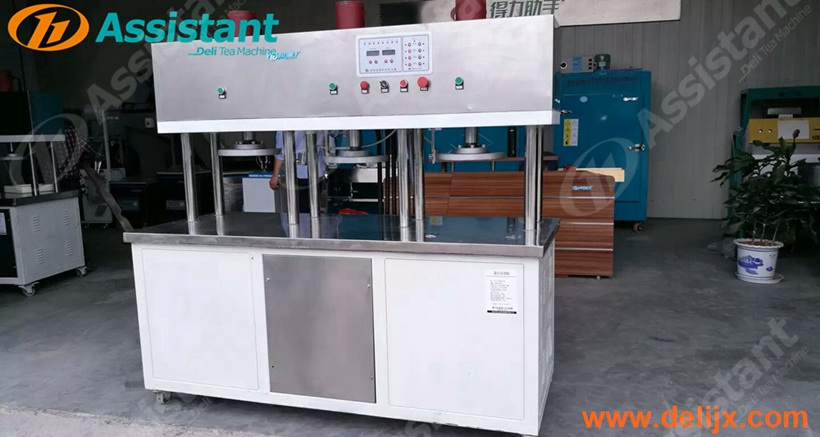

| DL-6CY3-15 tea cake tea brick press molding machine photos: |
 |
 |
 |
