Ochai Kawasaki Type Handheld One-man Tea Leaf Plucking Harvesting Machine 4C-T50A5

DL-4C-T50A5 handheld one-man tea leaf plucking machine cutting width is 450mm, 500mm, 600mm, use HUASHENG 1E34F gasoline engine.
  • Item NO.:

    DL-4C-T50A5
  • Brand:

    DELI ASSISTANT
  • Payment:

    T/T
  • Engine model:

    1E34F
  • Engine type:

    Gasoline
  • Displacement:

    2 stroke
  • Stroke:

    25.4 CC
  • Power:

    0.7 KW
  • Cutting width:

    450, 500, 600mm
  • Rack type:

    Ochiai, Kawasaki
  • Product Details

Description:
The handheld tea plucker is mainly used for tea picking in mountain, hilly, plain and other terrain. It is produced with international advanced technology. It has the advantages of low noise, large air volume, stable quality and high production efficiency. It is an ideal machine for tea picking.


We have improved this tea picking machine, using portable handheld design, weight ratio is more reasonable, use more easily, long-term use will not produce fatigue.

Parameter:

DL-4C-T50A5 one man hand held tea leaf plucker machine specification:

Model DL-4C-T50A5
Engine model HUASHENG 1E34F
Cutting width 450mm, 500mm, 600mm
Engine power 0.7kw / 0.9HP
Engine stroke 2 stroke
Displacement 25.4CC
Cooling type Air cooling
Packing size 108*33*34cm
Total weight 11kg

Advantage:

HUASHENG 2 stroke gasoline engine

Tea plcuking machine using HUASHENG 1E34F 2 stroke, 25.4CC, 0.7KW gasoline engine, output power is larger than 4 stroke,

please note that the ratio of engine oil to gasoline is 25:1.

Ochai Kawasaki Type Handheld One-man Tea Leaf Plucking Harvesting Machine 4C-T50A5

Ochai Kawasaki Type Handheld One-man Tea Leaf Plucking Harvesting Machine 4C-T50A5
Ochai Kawasaki Type Handheld One-man Tea Leaf Plucking Harvesting Machine 4C-T50A5
Ochai Kawasaki Type Handheld One-man Tea Leaf Plucking Harvesting Machine 4C-T50A5
High strength gear and gearbox
Ergonomic design handle

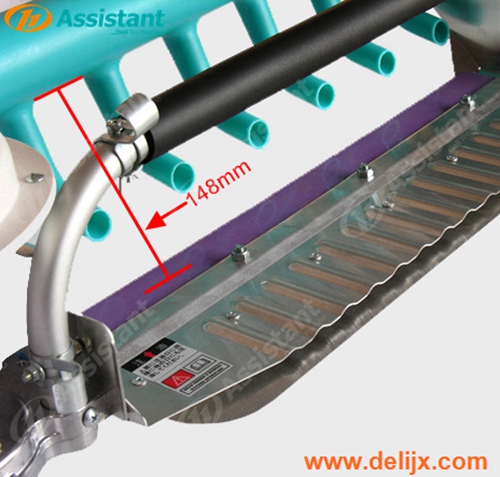

New patent higher knife rack
Ochai Kawasaki Type Handheld One-man Tea Leaf Plucking Harvesting Machine 4C-T50A5
Ochai Kawasaki Type Handheld One-man Tea Leaf Plucking Harvesting Machine 4C-T50A5
Ochai Kawasaki Type Handheld One-man Tea Leaf Plucking Harvesting Machine 4C-T50A5
Optimized design of blow pipe
New patent fan and cover, air volume more larger
SK5 steel super hard blade

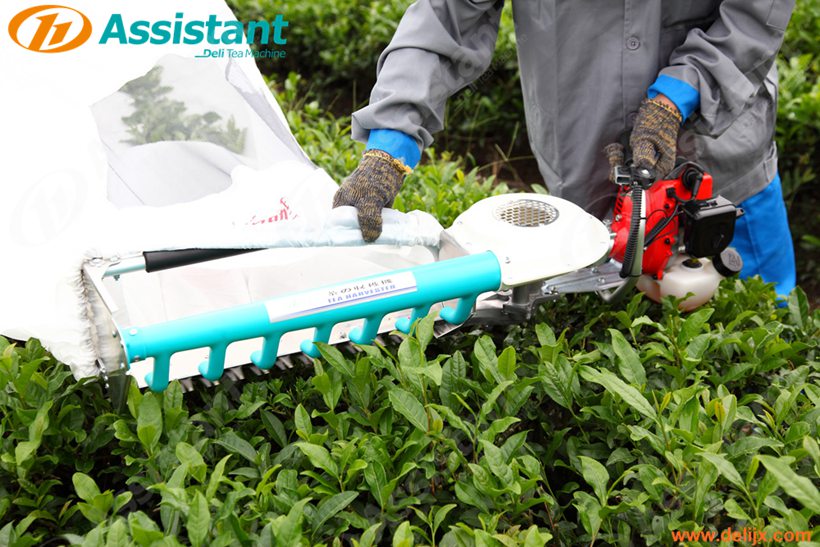

DL-4C-T50A5 one-man tea plucking harvestering machine photos:

One-man Handheld Tea Leaf Plucking Harvesting Machine 4C-T50A5
One-man Handheld Tea Leaf Plucking Harvesting Machine 4C-T50A5
One-man Handheld Tea Leaf Plucking Harvesting Machine 4C-T50A5
