Green/Black Tea Kneading Machine Small Tea Leaves Roller 6CRT-35

DL-6CRT-35 small tea leaves kneading machine rolling drum diameter is 350mm, height 260mm, this small tea roller can process 6.5kg fresh tea leaf per time.
  • Item NO.:

    DL-6CRT-35
  • Brand:

    DELI ASSISTANT
  • Dimension:

    820*900*1260 mm
  • Voltage:

    220V / 50Hz
  • Barrel diameter:

    350 mm
  • Barrel height:

    260 mm
  • Motor power:

    1.1 kW
  • Barrel speed:

    42 rpm
  • Maximum capacity per time:

    6.5 kg/h
  • Product Details
Description:

For non-fermented tea such as green tea: the main function of tea rolling machine is shaping.Through the action of external force, tea rolling machine makes the leaves smash and light, the tea roll turns into a strip shape, and the volume is reduced, which is good for brewing.


For fermented tea such as black tea: Through the external force of the tea kneading machine, the tea leaf's juice overflows, the tea cells are damaged, accelerates the enzymatic oxidation of polyphenolic compounds, provided conditions for subsequent fermentation of tea leaves, Improve the taste of finished tea and make the quality of tea better.

Application:
Tea rolling machine can use for most of tea such as black tea, green tea, and oolong tea, for green tea ( non-fermented ) is mainly used for shaping the strip type, for black tea ( fermented tea ) is mainly used to destroy the cells of fresh tea leaves, so that the juice in tea can flow out and facilitate subsequent fermentation.

Parameter:
DL-6CRT-35 small tea roller machine specification:
Model DL-6CRT-35
Dimension 820*900*1260 mm
Input voltage 220V / 50Hz
Tea disc diameter 720 mm
Barrel diameter 350 mm
Barrel height 260 mm
Matching motor Power 1.1 kW
Speed 1400 RPM
Rated voltage 220 V
Barrel speed 42 RPM
Productivity 30 Kg/h
Maximum capacity per time 6.5 kg

The above data is based on fresh tea leaf water content of 75-80%.
Details:

DL-6CRT-35 tea leaves kneading machine decomposition diagram:

Green/Black Tea Kneading Machine Small Tea Leaves Roller 6CRT-35

Transverse arm

Support column

Barrel cover

Rolling disc

Stainless steel Drum

Handwheel

Crank

Support frame

Transmission case

Tea discharge handle

Transmission belt

Tea outlet

Drive motor

Support leg

Advantage:

Green/Black Tea Kneading Machine Small Tea Leaves Roller 6CRT-35
Green/Black Tea Kneading Machine Small Tea Leaves Roller 6CRT-35
Green/Black Tea Kneading Machine Small Tea Leaves Roller 6CRT-35
Gear box
Copper core motor
Handwheel and barrel cover
Stable gearbox, crank and support frame , ensure smooth and safe operation of tea rolling machines
Powerful copper core drive motor, provide a steady source of power for tea kneading machines.
Convenient handwheel, the barrel lid is pressurized by springs, and can be rotated, quality of tea more higher.

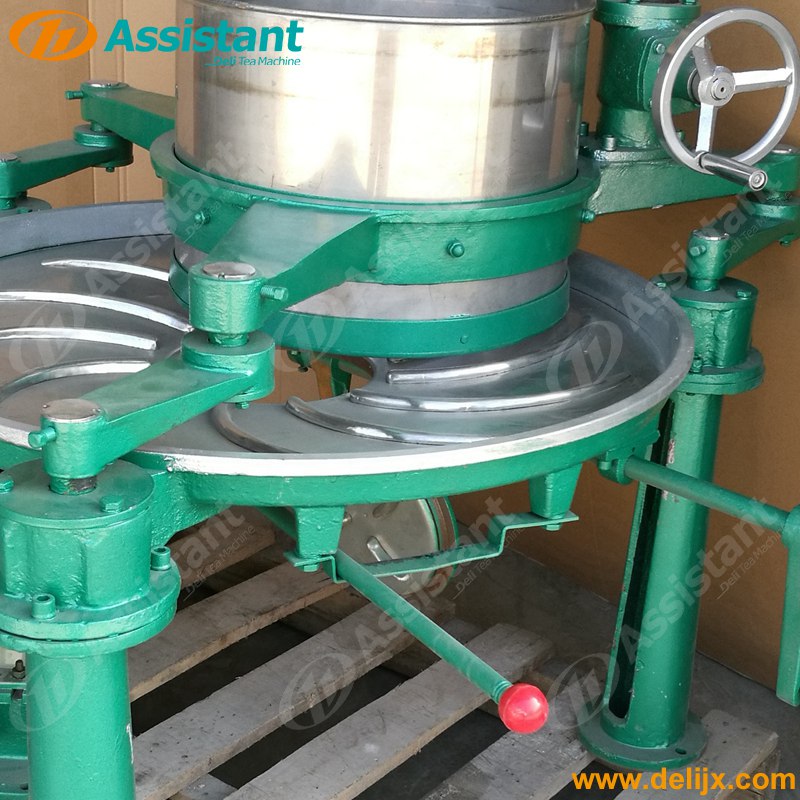

DL-6CRT-35 small tea roller machine photos:

Fresh Tea Leaves Kneading Machine Small Tea Roller For Processing Green/Black/Oolong Tea 6CRT-35
Fresh Tea Leaves Kneading Machine Small Tea Roller For Processing Green/Black/Oolong Tea 6CRT-35
Fresh Tea Leaves Kneading Machine Small Tea Roller For Processing Green/Black/Oolong Tea 6CRT-35
Fresh Tea Leaves Kneading Machine Small Tea Roller For Processing Green/Black/Oolong Tea 6CRT-35
Fresh Tea Leaves Kneading Machine Small Tea Roller For Processing Green/Black/Oolong Tea 6CRT-35
