Green Tea Stir Drying Machine Rotating Drum Dryer 6CSTP-CM90

DL-6CSTP-CM90 tea leaf stir rotating drum roasting dryer use wood and coal as fuel, for tea water conent, sorting and tighten stripe.
  • Item NO.:

    DL-6CSTP-CM90
  • Brand:

    DELI ASSISTANT
  • Dimension:

    2100×1100×1840mm
  • Voltage:

    220V / 380V
  • Barrel diameter:

    900 mm
  • Barrel length:

    1000 mm
  • Barrel speed:

    5-37 rpm
  • Heating type:

    Wood / Coal
  • Efficiency:

    80 kg/h
  • Product Details

Description:

This wood and coal heating tea leaf drum roasting drying machine is using at primary stage of tea processing, for drying water content, sorting and tighten stripe. The machine can also be used for stir day tealeaves, and other food like sunflower seed, pipe seeds.

Application:
This stir drum drying machine mainly used for green tea, make the finished tea leaf more tighten, quality more better.

Advantage:
Use high-grade heat-resistant cement, strong and durable;

Controllable water vapor emission system is adopted to save energy;

Intelligent temperature control system, easy to operate, accurate control;

The inner cylinder is made of 3.5mm thick steel plate, which is uniformly heated and prevents the tea from being scorched. It is the basic standard of high quality tea fixation;

Calcium silicate plate is used to increase heat preservation performance, environmental protection and energy saving, and professional furnace hot runner design, energy saving and high efficiency.

Parameter:
6CSTP-CM90 wood or coal heating green tea drum roasting dryer machine specification:

Model DL-6CSTP-CM90
Dimension 2100×1100×1840mm
Voltage 220V / 380V
Inner drum diameter 900 mm
Inner drum length 1000 mm
Drive motor Power 0.75 kw
Speed 1400 rpm
Voltage 220V / 380V
Exhaust motor Power 0.18 kw
Speed 1400 rpm
Voltage 220V / 380V
Blower motor Power 0.15 kw
Speed 2800 rpm
Voltage 220 V
Drum speed 5-37 rpm
Heating type Wood / Coal
Efficiency 80 kg/h
This equipment can also use biomass pellet fuel. We can also provide pellet fuel burners. If you need, please contact us.

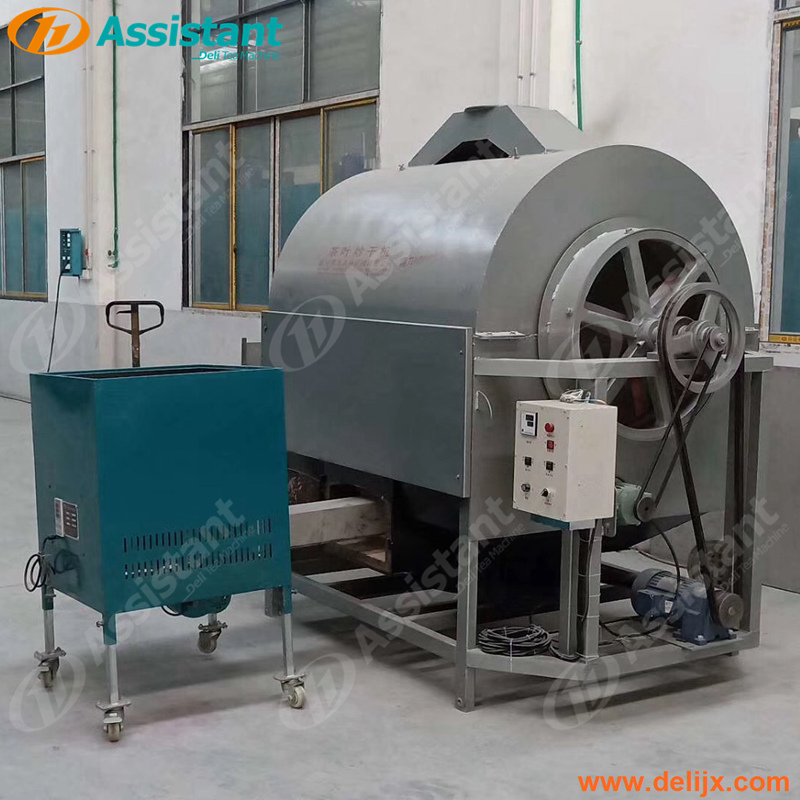

DL-6CSTP-CM90 wood heating tea leaf roasting drying machine photos:
Green Tea Stir Drying Machine Rotating Drum Dryer 6CSTP-CM90
Green Tea Stir Drying Machine Rotating Drum Dryer 6CSTP-CM90
Green Tea Leaf Stir Dry Machine Rotating Roasting Drum Dryer Tea Drying Machine 6CSTP-CM90
Green Tea Leaf Stir Dry Machine Rotating Roasting Drum Dryer Tea Drying Machine 6CSTP-CM90
Green Tea Leaf Stir Dry Machine Rotating Roasting Drum Dryer Tea Drying Machine 6CSTP-CM90
