2m² Electric Mini Black/Green Tea Drying Machine 6CHZ-2

DL-6CHZ-2 small mini tea drying machine drying area is 2m², voltage 220V, power 3kw, can dry about 25kg tea per time, can use for green black and other kind tea.
  • Item NO.:

    DL-6CHZ-2
  • Brand:

    DELI ASSISTANT
  • Dimension:

    710×680×1350 mm
  • Voltage:

    220/50 V/Hz
  • Heating element:

    Electric heating wire
  • Total power/Group:

    3kw / 1 group
  • Rotary speed:

    6 rpm
  • Rotary type:

    Round
  • Total drying area:

    1.96 m2
  • Drying layer:

    10
  • Efficiency:

    25 kg/h
  • Product Details

Description:
1. Unique air duct design, the air is more uniform and the noise is lower;
2. Rotary drying tray structure, drying more evenly;
3. Excellent heat insulation, heat preservation and energy saving;
4. The use of calcium silicate board increases the insulation effect;
5. Intelligent temperature control system, easy to operate and precise control;
6. Double temperature control design, protection is more in place.

Application:
Tea leaf drying machine can process almost all tea: such as black tea, green tea, oolong tea, and herbal tea.

This 6CHZ-2 mini tea dryer can use for home and small factory, it just need a small area, power 3KW, voltage 220V, drying area 2m², it can process about 25kg tea per time, It's the best choice for families and small factories.

Parameter:
DL-6CHZ-2 tea leaf drying machine specification:

Model DL-6CHZ-2
Dimension 710×680×1350 mm
Voltage 220/50 V/Hz
Heating element Electric heating wire
Total heating power 3.0 kw
Heating element group 1 Group
Fan motor Power 0.18 KW
Speed 1400 rpm
Rated voltage 220 V
Pallet rotary motor Power 15 W
Speed 1250 rpm
Rated voltage 220 V
Pallet rotary speed 6 rpm
Pallet type Round
Drying pallet diameter 500 cm
Effective drying area 1.96 m2
Number of drying pallet 10
Efficiency 25 kg/h

The above data is based on fresh tea leaf water content of 75-80%.

Deatails:

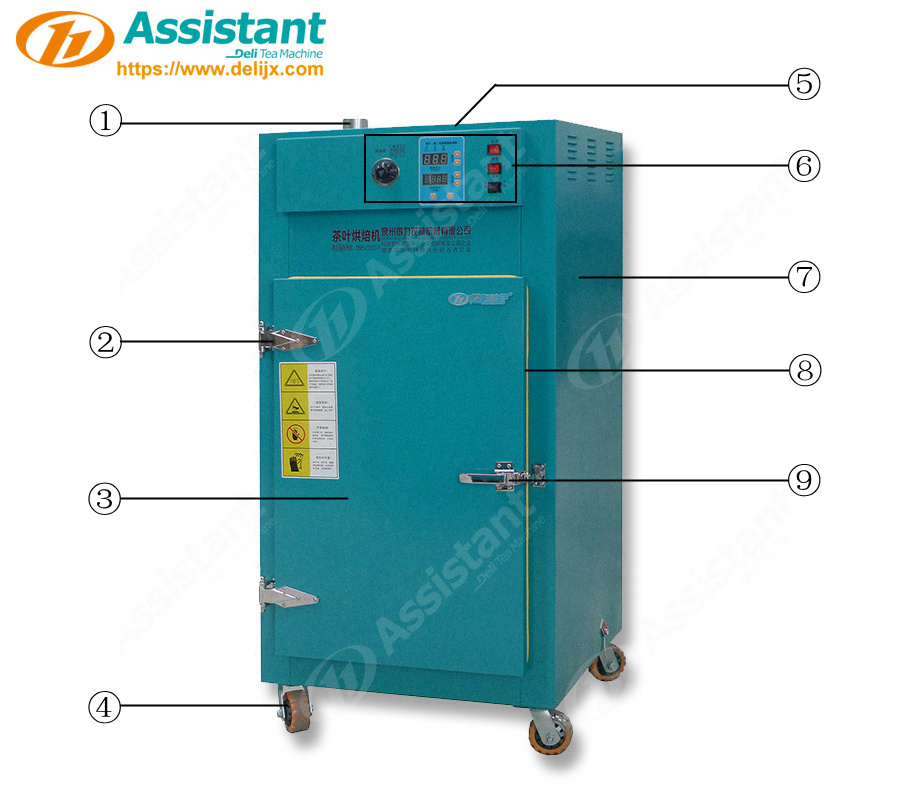

DL-6CHZ-2 mini green/black tea drying machine decomposition diagram:

Electric Small Mini Green/Black Dryer, Orthodox Tea Drying Machine 6CHZ-2

Exhaust vent

Hinge

Door

Nylon wheel

Drive motor

Electric control panel

Tank body

Sealing strip

Handle

Advantage:

Intelligent temperature and time control system

Add mechanical temperature limiting module to ensure precise temperature control.
Electric Small Mini Green/Black Dryer, Orthodox Tea Drying Machine 6CHZ-2

Electric Small Mini Green/Black Dryer, Orthodox Tea Drying Machine 6CHZ-2
Electric Small Mini Green/Black Dryer, Orthodox Tea Drying Machine 6CHZ-2
Electric Small Mini Green/Black Dryer, Orthodox Tea Drying Machine 6CHZ-2
Patented hot air duct design
Copper core driving motor on the top
Galvanized sheet and calcium silicate board insulation system

Electric Small Mini Green/Black Dryer, Orthodox Tea Drying Machine 6CHZ-2
Electric Small Mini Green/Black Dryer, Orthodox Tea Drying Machine 6CHZ-2
Tea drying machine modular design
Rotary drying method for tea

DL-6CHZ-2 mini small green/black tea drying machine photos:

Electric Small Mini Green/Black Dryer, Orthodox Tea Drying Machine 6CHZ-2
Electric Small Mini Green/Black Dryer, Orthodox Tea Drying Machine 6CHZ-2
Electric Small Mini Green/Black Dryer, Orthodox Tea Drying Machine 6CHZ-2
Electric Small Mini Green/Black Dryer, Orthodox Tea Drying Machine 6CHZ-2
Electric Small Mini Green/Black Dryer, Orthodox Tea Drying Machine 6CHZ-2
