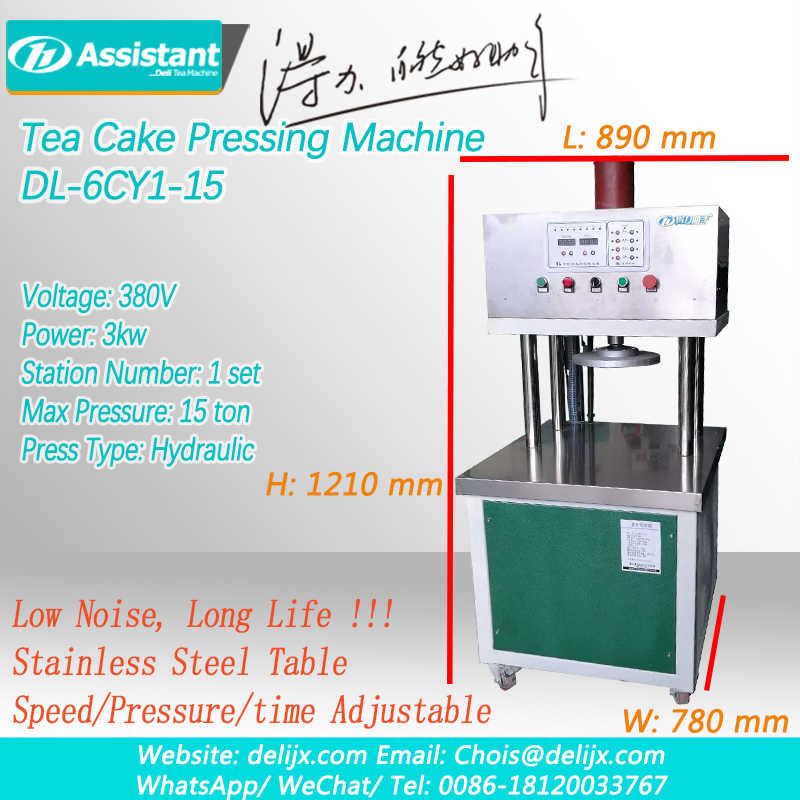

Cake/Chocolate/Brick/Triangle Type Tea Pressing Molding Machine 6CY1-15

DL-6CY1-15 hydraulic tea brick tea cake molding press machine has 1 working station, adopts automatic hydraulic control system, which greatly improves tea cake brick production efficiency.
  • Item NO.:

    DL-6CY1-15
  • Brand:

    DELI ASSISTANT
  • Dimensions:

    700×760×1700 mm
  • Input power:

    380/50 V/HZ
  • Pressing work stroke:

    ≥200 mm
  • Pressurization method:

    Hydraulic
  • Number of stations:

    1
  • Maximum pressure:

    ≥120 kN
  • Driving Power:

    3 kW
  • Motor Speed:

    1400 r/min
  • Rated Voltage:

    380 V
  • Product Details

Description:
Tea cake brick pressing machine can used for many kinds tea, such as puer tea, brick tea, cake tea and other tea, DL-6CY1-15 automatic hydraulic tea press machine used for press molding of cake tea, brick tea, bowl tea, etc. make the tea more compact and the shape of the tea is good, this machine has 1 working station, adopts automatic hydraulic control system, which greatly improves tea cake brick production efficiency.

Feature:
1. The integrated design, the appearance of the large enclosure, with the moving bottom wheel, the overall appearance is beautiful and practical;
2. The main structural steel plate of the whole machine adopts Q345B high-strength steel plate;
3. Stainless steel plates are used in contact with the materials to ensure hygiene compliance;
4. Fully automatic control system and pressure sensing device make operation easier.

Parameter:

DL-6CY1-15 brick tea cake tea press machine specification:

Model DL-6CY1-15
Dimensions (length × width × height) 700×760×1700 mm
Input Power(voltage / frequency) 380/50 V/HZ
Pressing work stroke ≥200 mm
Pressurization method Hydraulic
Number of stations 1
Maximum pressure ≥120 kN
Driving Power 3 kW
Motor Speed 1400 r/min
Rated Voltage 380 V

DL-6CY2-15 press machine for tea cake processing details:

Cake/Chocolate/Brick/Triangle Type Tea Pressing Molding Machine 6CY1-15
Cake/Chocolate/Brick/Triangle Type Tea Pressing Molding Machine 6CY1-15
Steamed tea Put tea bag in the mold
Cake/Chocolate/Brick/Triangle Type Tea Pressing Molding Machine 6CY1-15
Cake/Chocolate/Brick/Triangle Type Tea Pressing Molding Machine 6CY1-15
Pressing Tea cake molding

DL-6CY1-15 tea cake tea brick press molding machine photos:

Cake/Chocolate/Brick/Triangle Type Tea Pressing Molding Machine 6CY1-15
Cake/Chocolate/Brick/Triangle Type Tea Pressing Molding Machine 6CY1-15
Cake/Chocolate/Brick/Triangle Type Tea Pressing Molding Machine 6CY1-15
