Item NO.:
DL-4C-SBrand:
DELI ASSISTANTPayment:
T/TEngine model:
1E34FEngine type:
GasolineDisplacement:
25.4 CCStroke:
2 strokePower:
0.7 kwCutting width:
450, 500, 600 mmRack type:
Kawasaki, Ochiai
| Description: |
We have improved the backrest, widened the shoulder strap, long-term use will not produce fatigue, so that more efficient tea picking
DL-4C-S 2 stroke gasoline engine tea leaf harvester spcification:
Parameter:
Model
DL-4C-S
Engine model
HUASHENG 1E34F
Cutting width
450mm, 500mm, 600mm
Engine power
0.7kw / 0.6HP
Engine stroke
2 stroke
Displacement
25.4CC
Cooling type
Air cooling
Engine size
32*32*42cm
Knife rack size
105*25*30cm
| Advantage: |
|
HUASHENG 2 stroke gasoline engine
Tea plcuking machine using HUASHENG 2 stroke, 25.4CC, 0.7KW gasoline engine, output power is larger than 4 stroke, please note that the ratio of engine oil to gasoline is 25:1.
The performance is more stable, and will not extinguish at high temperature.
|
 |
 |
 |
 |
|
High strength gear and gearbox |
Advanced backrest design |
New patent knife rack |
 |
 |
 |
|
Optimized design of blow pipe |
New patent fan and cover |
SK5 steel super hard blade |

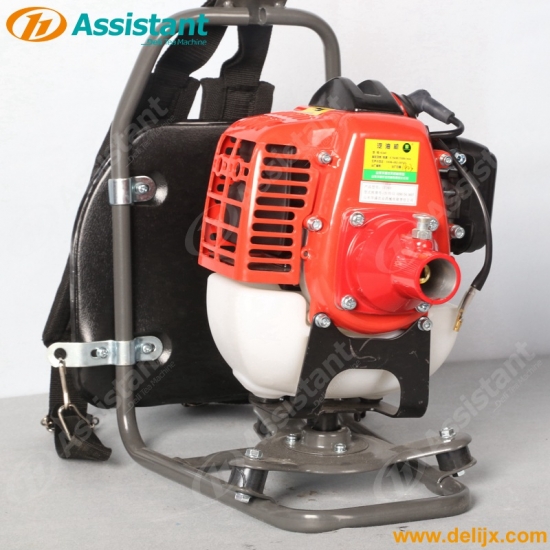

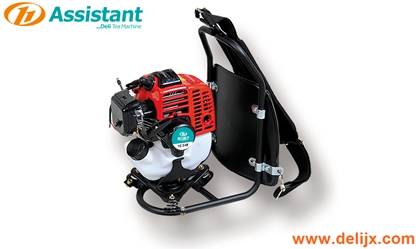

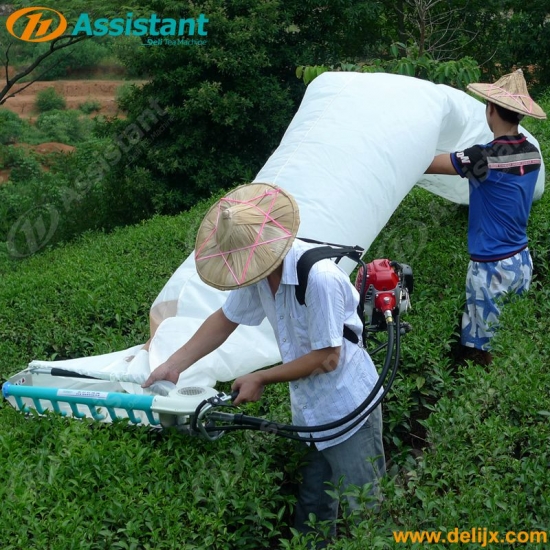

| DL-4C-S one man tea leaf harvester plucking machine photos: |
 |
 |
 |
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
DL-4C-H tea harvester use HONGDA GX35 4 stroke engine, power 1.35kw, displacement 35cc, total weight about 10.2kg, cutting width 450, 500 and 600mm.
DL-4C-Z tea harvesting machine use KOMATSU 2 stroke engine, power 0.81kw, displacement 25.4CC, total weight about 9.2kg, cutting width 450, 500 and 600mm.

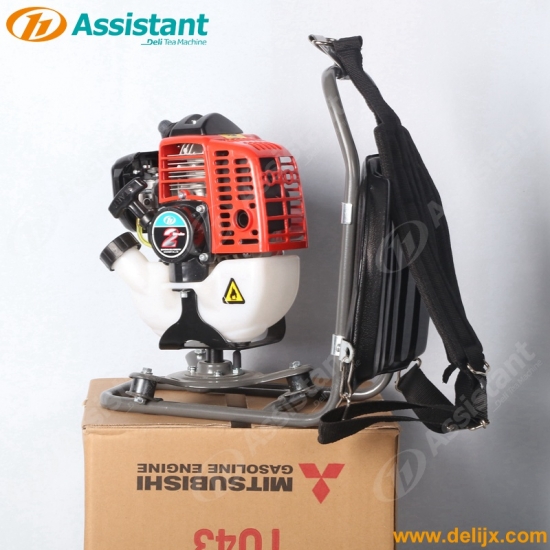

DL-4C-T tea plucking machine use MITSUBISHI 2 stroke engine, power 0.7kw, displacement 25.4CC, total weight about 9.2kg, cutting width 450, 500 and 600mm.
DL-4C-Y tea harvesting machine use NATIKA 2 stroke engine, power 0.7kw, displacement 25.4CC, total weight about 9.2kg, cutting width 450, 500 and 600mm.
DL-4C-S39 tea collection machine use HUASHENG 4 stroke engine, power 0.7kw, displacement 31CC, total weight about 9.2kg, cutting width 450, 500 and 600mm.
DL-6CHL-CM32 chain plate drying machine use fire wood or coal heating, drying area 32m², capacity about 190kg - 250 kg per hour
DL-6CFX-435QB used for sorting different kind tea, screen out strip tea, broken tea and tea powder of different specifications
DL-6CHZ-2 small mini tea drying machine drying area is 2m², voltage 220V, power 3kw, can dry about 25kg tea per time, can use for green black and other kind tea.
