Item NO.:
DL-4C-H3Brand:
DELI ASSISTANTPayment:
T/TEngine model:
HONDA GX35Engine type:
GasolineDisplacement:
35 CCStroke:
4 strokePower:
1.8 kwCutting width:
450, 500, 600 mmRack type:
Kawasaki, Ochiai
| Description: |
We have improved the backrest, widened the shoulder strap, long-term use will not produce fatigue, so that more efficient tea picking.
DL-4C-H3 4 stroke gasoline engine tea leaf harvester spcification:
Parameter:
Here are all of our gasoline type tea plucker machine:
Model
DL-4C-H3
Engine model
HONDA GX35
Cutting width
450mm, 500mm, 600mm
Engine power
1.35kw / 1.8HP
Engine stroke
4 stroke
Displacement
35CC
Cooling type
Air cooling
Engine size
32*32*42cm
Knife rack size
105*25*30cm
We also have battery type, if you need, please contact us.
Model
Engine Model
Stroke
Power
Displacement
DL-4C-H3
HONDA GX35
4 stroke
1.35 kw
35 CC
DL-4C-H2
HONDA GX25
4 stroke
0.81 kw
25 CC
DL-4C-Z
KOMATSU G26LS
2 stroke
0.81 kw
25.4 CC
DL-4C-T
MITSUBISHI TU26
2 stroke
0.7 kw
25.4 CC
DL-4C-S
HUASHENG 1E34F
2 stroke
0.7 kw
25.4 CC
DL-4C-Y
NATIKA 1E34F
2 stroke
0.7 kw
25.4 CC
DL-4C-S39
HUASHENG 139F
4 stroke
0.7 kw
31 CC
| Advantage: |
|

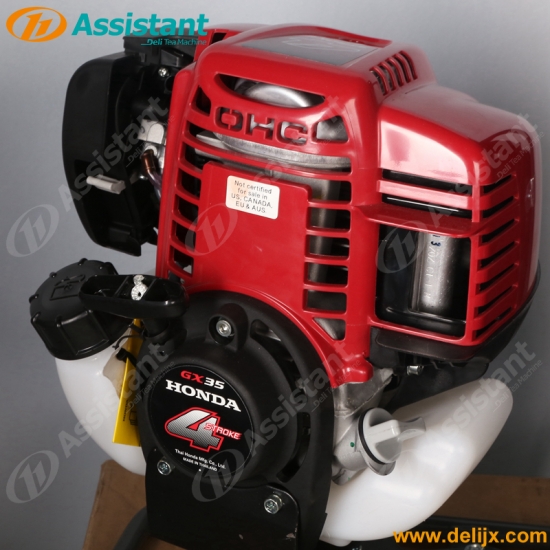

HONGDA GX35 4 stroke gasoline engine
Tea plcuking machine using HUASHENG 4 stroke, 35 CC, 1.35KW gasoline engine, the noise is lower than the 2 stroke and is more fuel save than the 2 stroke engine. The performance is more stable, and will not extinguish at high temperature. Tea picking is more efficient and efficiency is 40 times that of manual labor. |
 |
 |
 |
 |
|
High strength gear and gearbox |
Advanced backrest design |
New patent knife rack |
 |
 |
 |
|
Optimized design of blow pipe |
New patent fan and cover |
SK5 steel super hard blade |

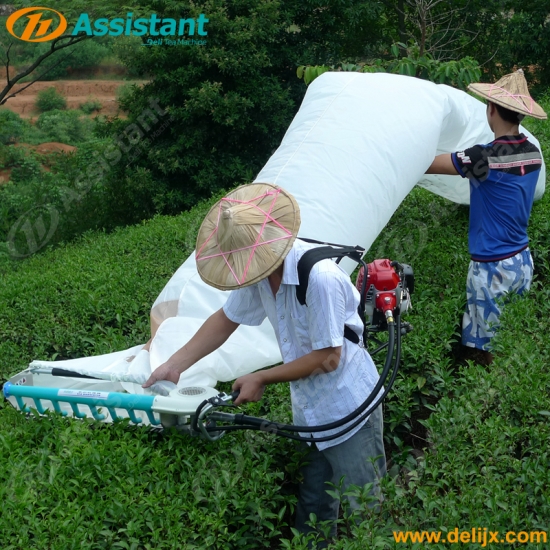

| DL-4C-S one man tea leaf harvester plucking machine photos: |
 |
 |
 |
Highly customized tea processing machine to meet your special needs, strictly product quality control is our requirement .
DL-4C-S backpack type srilanka big tea leaf plucker harvesting machine use HUASHENG 1E34FW gasoline engine, cutting width 450mm 500mm and 600mm.
DL-4C-Z tea harvesting machine use KOMATSU 2 stroke engine, power 0.81kw, displacement 25.4CC, total weight about 9.2kg, cutting width 450, 500 and 600mm.
DL-4C-T tea plucking machine use MITSUBISHI 2 stroke engine, power 0.7kw, displacement 25.4CC, total weight about 9.2kg, cutting width 450, 500 and 600mm.
DL-4C-Y tea harvesting machine use NATIKA 2 stroke engine, power 0.7kw, displacement 25.4CC, total weight about 9.2kg, cutting width 450, 500 and 600mm.
DL-4C-S39 tea collection machine use HUASHENG 4 stroke engine, power 0.7kw, displacement 31CC, total weight about 9.2kg, cutting width 450, 500 and 600mm.
Granular Type Oolong Tea Canvas Wrapping Rolling Machine is suitable for the tea-making process before the shaping and bag-type kneading of oolong tea and substitutes for the heavy manual bag type kneading operation.
DL-4C-T tea plucking machine use MITSUBISHI 2 stroke engine, power 0.7kw, displacement 25.4CC, total weight about 9.2kg, cutting width 450, 500 and 600mm.
Automatic tea cake press machine use 304 stainless steel, which is clean and free of rust. With steam generator, small floor are. PLC control panel, all operations at a glance.
