Item NO.:
DL-6CSTP-D90Brand:
DELI ASSISTANTDimension:
2100×1150×1780 mmVoltage:
380V /50HzBarrel diameter:
900 mmBarrel length:
1000 mmHeating power:
27 kwBarrel speed:
5-37 rpmHeating type:
Electric Heating WireEfficiency:
80 kg/h
| Description: |
This electric heating tea leaf drum roasting drying machine is using at primary stage of tea processing, for drying water content, sorting and tighten stripe. The machine can also be used for stir day tealeaves, and other food like sunflower seed, pipe seeds.
| Application: |
| Advantage: |
The heating pipe of stainless steel pipe is strong and durable;
Controllable water vapor emission system is adopted to save energy;
Intelligent temperature control system, easy to operate, accurate control;
Calcium silicate board is used to increase heat preservation performance, environmental protection and energy saving;
The inner drum is made of 3.5mm thick steel plate, which is uniformly heated and can eliminate the scorching of tea. It is the basic standard of high-quality tea green-killing.
| Parameter: |
Model
DL-6CSTP-D90
Dimension
2100×1150×1780 mm
Voltage
380V /50Hz
Inner drum diameter
900 mm
Inner drum length
1000 mm
Drive motor
Power
0.75 kw
Speed
1400 rpm
Voltage
380 V
Exhaust motor
Power
0.18 kw
Speed
1400 rpm
Voltage
380V /220V
Total heating power
27 kw
Drum speed
5-37 rpm
Efficiency
80 kg/h

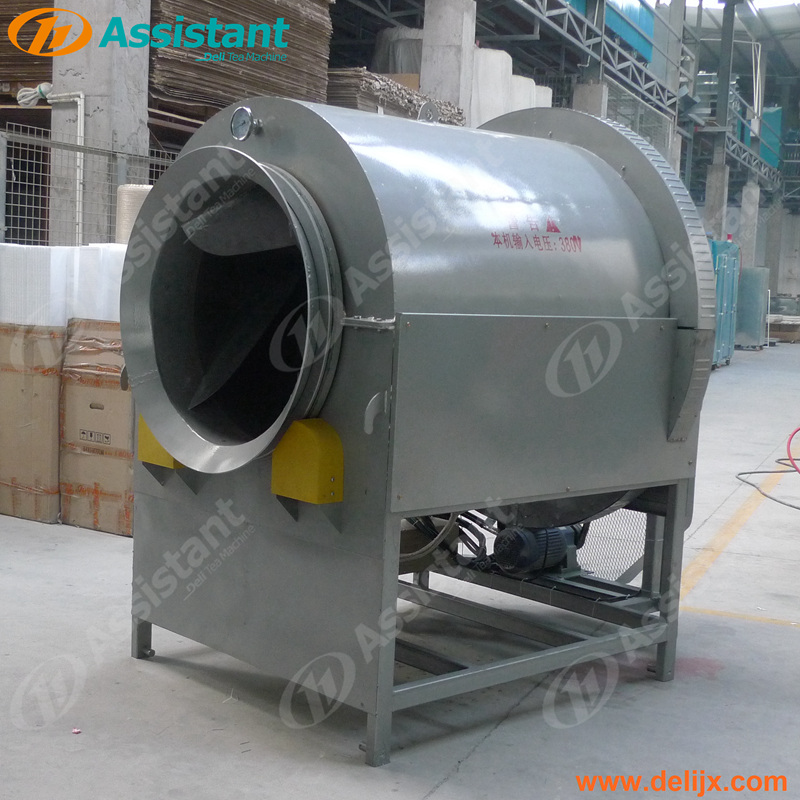

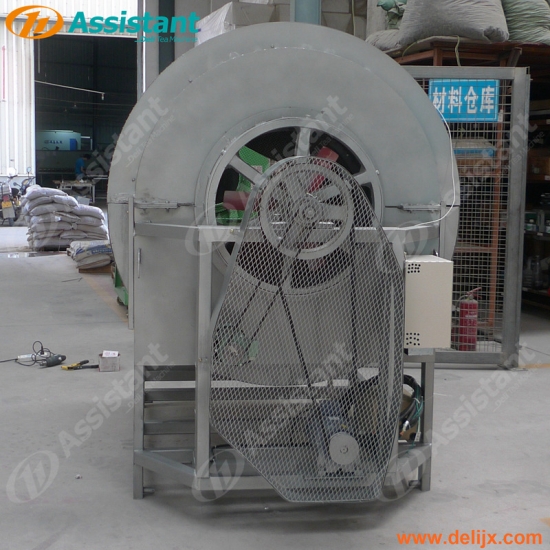

| DL-6CSTP-D90 electric heating tea leaf roasting dryer photos: |
 |
 |
 |
 |
 |
