Orthodox Oolong/Green Tea Leaf Fixation Machine 6CST-100

DL-6CST-100 Green tea leaves fixation machinerys barrel diameter is 100cm, can process about 130kg fresh tea leaves per hour.
  • Item NO.:

    DL-6CST-100
  • Brand:

    DELI ASSISTANT
  • Barrel diameter:

    1000 mm
  • Barrel length:

    1500 mm
  • Rotating speed:

    5-37 rpm
  • Fuel type:

    Gas
  • Maximum temperature:

    350 ℃
  • Temperature control:

    Automatic control
  • Voltage:

    380V / 50Hz
  • Dimension:

    1330×2400×2010 mm
  • Efficiency:

    130 kg/h
  • Product Details

Description:

1. Excellent heat insulation, heat preservation and energy saving;
2. Using calcium silicate board, increasing the heat preservation effect and meeting the food hygiene requirements;
3. Increased insulation of the front plate of the drum;
4. Intelligent temperature control system, easy to operate and precise control;
5. Hand and self-integration control, double guarantee;
6. Large feed inlet, easy to feed, and faster discharge. The dryness of the products coming out before and after is more uniform, the taper size is longer, and the material is not dropped;
7. The inner cylinder adopts a steel plate with a thickness of 2.5mm to prevent the deformation of the cylinder at high temperature. The work can store energy, less heat loss, smaller temperature change and more energy saving;
8. Use a controlled water vapor discharge system to save energy.

Parameter:

DL-6CST-100 tea leaf fixation machine specification:

Model DL-6CST-100
Dimensions 1330×2400×2010 mm
Voltage 380/50 V/Hz
Inner barrel diameter 1000 mm
Inner barrel length 1250 mm
Drive motor Power 0.75 KW
Speed 1400 rpm
Voltage 380 V
Exhaust fan Power 85 W
Speed 2200 rpm
Voltage 220 V
Barrel speed 5-37 rpm
Heating type Gas
Efficiency 130 kg/h

The above data is based on fresh tea leaf water content of 75-80%.

Details:

DL-6CST-100 tea leaf fixation machine decomposition diagram:

Orthodox Green/Oolong Tea Leaf Fixation Machine Tea Fixing Machinery Manufacturer 6CST-100

Electric control panel

Heat dissipating switch

Thermometer

Handle

Outer barrel

Balance bolt

Inner barrel

Shock absorber rod

nylon wheel

Combustion zone

Ignition switch

Support frame


Advantage:

Orthodox Green/Oolong Tea Leaf Fixation Machine Tea Fixing Machinery Manufacturer 6CST-100
Integrated multifunctional electric control box
The first intelligent temperature control system in tea machinery industry
Orthodox Green/Oolong Tea Leaf Fixation Machine Tea Fixing Machinery Manufacturer 6CST-100
Orthodox Green/Oolong Tea Leaf Fixation Machine Tea Fixing Machinery Manufacturer 6CST-100
Orthodox Green/Oolong Tea Leaf Fixation Machine Tea Fixing Machinery Manufacturer 6CST-100
Copper core driving motor Gas-fired igniter
Shock absorber cylinder

Orthodox Green/Oolong Tea Leaf Fixation Machine Tea Fixing Machinery Manufacturer 6CST-100
Orthodox Green/Oolong Tea Leaf Fixation Machine Tea Fixing Machinery Manufacturer 6CST-100
"T" type gas burner
Calcium silicate board insulation layer

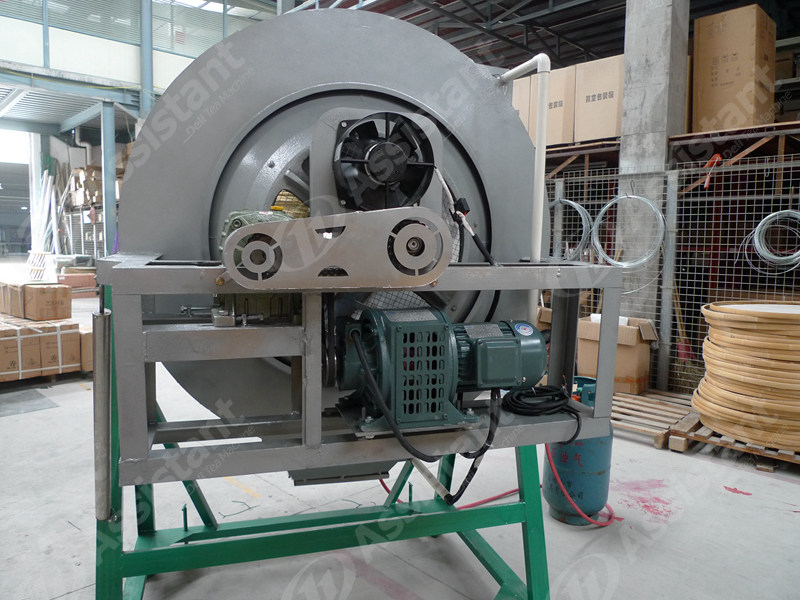

DL-6CST-90 gas heating tea fixing machine photos:

Orthodox Green/Oolong Tea Leaf Fixation Machine Tea Fixing Machinery Manufacturer 6CST-100
Orthodox Green/Oolong Tea Leaf Fixation Machine Tea Fixing Machinery Manufacturer 6CST-100
Orthodox Green/Oolong Tea Leaf Fixation Machine Tea Fixing Machinery Manufacturer 6CST-100
Orthodox Green/Oolong Tea Leaf Fixation Machine Tea Fixing Machinery Manufacturer 6CST-100
Orthodox Green/Oolong Tea Leaf Fixation Machine Tea Fixing Machinery Manufacturer 6CST-100
Orthodox Green/Oolong Tea Leaf Fixation Machine Tea Fixing Machinery Manufacturer 6CST-100
