Gas Heating Tea Leaf Fixing Roasting Machine 6CST-90

DL-6CST-90 liquid gas heating tea leaf fixation machine can use for many kinds tea, such as green tea, oolong tea and other tea leaves.
  • Item NO.:

    DL-6CST-90
  • Brand:

    DELI ASSISTANT
  • Barrel diameter:

    900 mm
  • Barrel length:

    1240 mm
  • Rotating speed:

    5-37 rpm
  • Fuel type:

    Liquid gas
  • Maximum temperature:

    350 ℃
  • Temperature control:

    Automatic control
  • Voltage:

    380V / 50Hz
  • Dimension:

    1230×2100×1840 mm
  • Efficiency:

    100 kg/h
  • Product Details

Description:
DL-6CST-90 liquid gas heating tea fixation machine use of high temperature to destroy the activity of enzymes in fresh leaves, to prevent polyphenol oxidase from continuing to oxidize, so that the water inside the fresh leaves evaporates. Making the smell of grass in the tea subsides, the fragrance of tea emerges, and the leaves become soft, creates conditions for rolling process.

Application:
DL-6CST-90 tea fixation machine can processing many kinds tea, such as green tea, yellow tea, brick tea and oolong tea and so on.

Parameter:

DL-6CST-90 tea fixing machine specification:

Model DL-6CST-90
Dimensions 1230×2100×1840 mm
Voltage 380/50 V/Hz
Inner barrel diameter 900 mm
Inner barrel length 1240 mm
Drive motor Power 0.75 KW
Speed 1390 rpm
Voltage 380 V
Exhaust fan Power 85 W
Speed 2200 rpm
Voltage 220 V
Barrel speed 5-37 rpm
Heating type Liquid gas
Efficiency 100 kg/h

The above data is based on fresh tea leaf water content of 75-80%.

Details:

DL-6CRT-90 tea leaf roasting machine decomposition diagram:

Gas Heating Tea Leaf Fixing Roasting Machine 6CST-90

Electric control panel

Heat dissipating switch

Thermometer

Handle

Outer barrel

Balance bolt

Inner barrel

Shock absorber rod

nylon wheel

Combustion zone

Ignition switch

Support frame


Advantage:

Gas Heating Tea Leaf Fixing Roasting Machine 6CST-90
Integrated multifunctional electric control box
The first intelligent temperature control system in tea machinery industry
Gas Heating Tea Leaf Fixing Roasting Machine 6CST-90
Gas Heating Tea Leaf Fixing Roasting Machine 6CST-90
Gas Heating Tea Leaf Fixing Roasting Machine 6CST-90
Copper core driving motor Gas-fired igniter
Shock absorber cylinder

Gas Heating Tea Leaf Fixing Roasting Machine 6CST-90
Gas Heating Tea Leaf Fixing Roasting Machine 6CST-90
"T" type gas burner
Calcium silicate board insulation layer

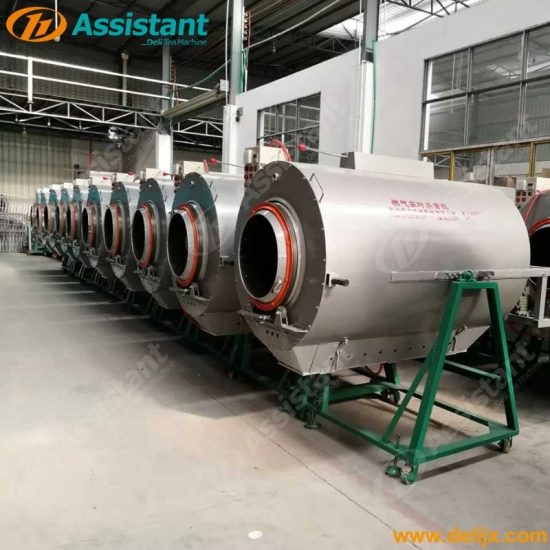

DL-6CST-90 gas heating tea fixing machine photos:

Tea Processing Machine Tea Leaf Fixing Roasting Machine 6CST-90
Tea Processing Machine Tea Leaf Fixing Roasting Machine 6CST-90
Tea Processing Machine Tea Leaf Fixing Roasting Machine 6CST-90
Tea Processing Machine Tea Leaf Fixing Roasting Machine 6CST-90
Tea Processing Machine Tea Leaf Fixing Roasting Machine 6CST-90
Tea Processing Machine Tea Leaf Fixing Roasting Machine 6CST-90
