1000mm Cutting Width Ochiai Two Men Tea Harvester Tea Leaf Plucking Machine 4CP-100

DL-4CP-100 ochiai two men tea leaf harvester plucker machine use G4K gasoline engine, cutting width is 1000mm, we also provide 1140mm and 1200mm cutting width.
  • Item NO.:

    DL-4CP-100
  • Brand:

    DELI ASSISTANT
  • Payment:

    T/T
  • Engine model:

    G4K
  • Engine type:

    Gasoline
  • Displacement:

    42 CC
  • Stroke:

    2 stroke
  • Power:

    2.2 kw
  • Cutting width:

    1000, 1140, 1210, 1400, 1600mm
  • Rack type:

    Ochiai, Kawasaki
  • Product Details

Description:
1. The body of Tea Leaf Picker uses the high strength aluminum alloy, achieve the advantages of high strength, light weight.
2. The Tea Leaf Picker has the advantage of light weight and durable, convenient operation, low oil consumption, low noise, small vibration, low loss rate.
3. This Tea Leaf Picker adopts the patent working head, large air volume, firm structure, high picking efficiency.
4. The air duct and fan adopts imported material, more thick and firm, longer service life.

Patameter:
2-men 1000mm cutting width tea leaf harvester specification:

Model DL-4CP-100
Engine model G4K
Cutting width 1000 mm
Engine power 2.2kw / 2.9HP
Engine stroke 2 stroke
Displacement 41.5CC
Cooling type Air cooling
Blade type Straight type
Weight 29kg

Details:

G4K 2 stroke gasoline engine

Tea plcuking machine using G4K 2 stroke, 41.5CC, 2.2KW gasoline engine, output power is larger than 4 stroke,

please note that the ratio of engine oil to gasoline is 25:1.

The performance is more stable, and will not extinguish at high temperature.
1000mm Cutting Width Ochiai Two Men Tea Harvester Tea Leaf Plucking Machine 4CP-100

1000mm Cutting Width Ochiai Two Men Tea Harvester Tea Leaf Plucking Machine 4CP-100
1000mm Cutting Width Ochiai Two Men Tea Harvester Tea Leaf Plucking Machine 4CP-100
1000mm Cutting Width Ochiai Two Men Tea Harvester Tea Leaf Plucking Machine 4CP-100
High strength gear and gearbox
Ergonomic design handle
New patent knife rack
1000mm Cutting Width Ochiai Two Men Tea Harvester Tea Leaf Plucking Machine 4CP-100
1000mm Cutting Width Ochiai Two Men Tea Harvester Tea Leaf Plucking Machine 4CP-100
1000mm Cutting Width Ochiai Two Men Tea Harvester Tea Leaf Plucking Machine 4CP-100
Optimized design of blow pipe
Gear buckle design
SK5 steel super hard blade

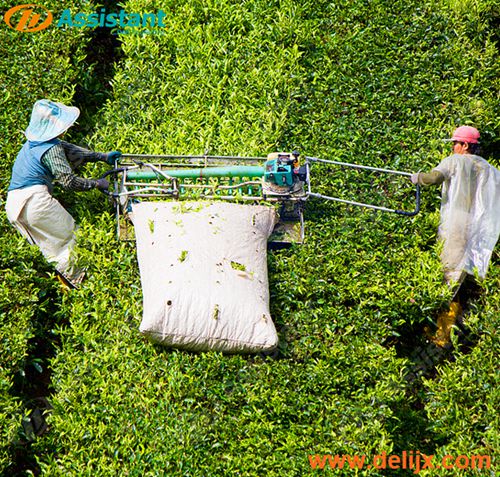

DL-4CP-100 two men tea leaf plucker photos:

Two Men Ochiai Tea Leaf Plucking Machine Cutting Width 1000mm 4CP-100
Two Men Ochiai Tea Leaf Plucking Machine Cutting Width 1000mm 4CP-100
