Finished Tea Leaf Winnowing Sorting Machine 6CFX-40

DL-6CFX-40 tea leaf winnowing sorter sorting machine can use for all most kind tea, such as green tea, black tea, oolong tea and so on.
  • Item NO.:

    DL-6CFX-40
  • Brand:

    DELI ASSISTANT
  • Dimension:

    4080×760×2130 mm
  • Voltage/frequency:

    380/50 V/Hz
  • Total power:

    2.6 KW
  • Grade:

    4 Level
  • Product Details

Description:
1. It adopts large air volume fan and can be equipped with adjustable speed motor 5. It can be used for sorting different materials;
2. Stainless steel hopper environmental protection and sanitation;
3. The inlet and outlet of the hoist are equipped with vibration drop, and the blanking material is more dispersed and more uniform.

Application:
Finished tea leaf sorting process sorter machine can use for many kind tea, such as green tea, black tea, oolong tea, white tea, dark tea and so on.

Parameter:
DL-6CFX-40 tea winnowing sorting process machine specification:

Model DL-6CFX-40
Dimensions (L*W*H) 4080×760×2130 mm
voltage / frequency 380/50 V/Hz
Feeding method Hoister
Grade 4 Level
Fan speed control mode YCT speed regulation
Fan power 1.5 kW
Motor speed 1400 r/min
Rated voltage 380 V
Hoist Power 1.1 kW
Lifting Height 1560 mm
Conoveying Bandwidth 225 mm
Output per hour 500 Kg/h
The above data is based on fresh tea leaf water content of 75-80%.

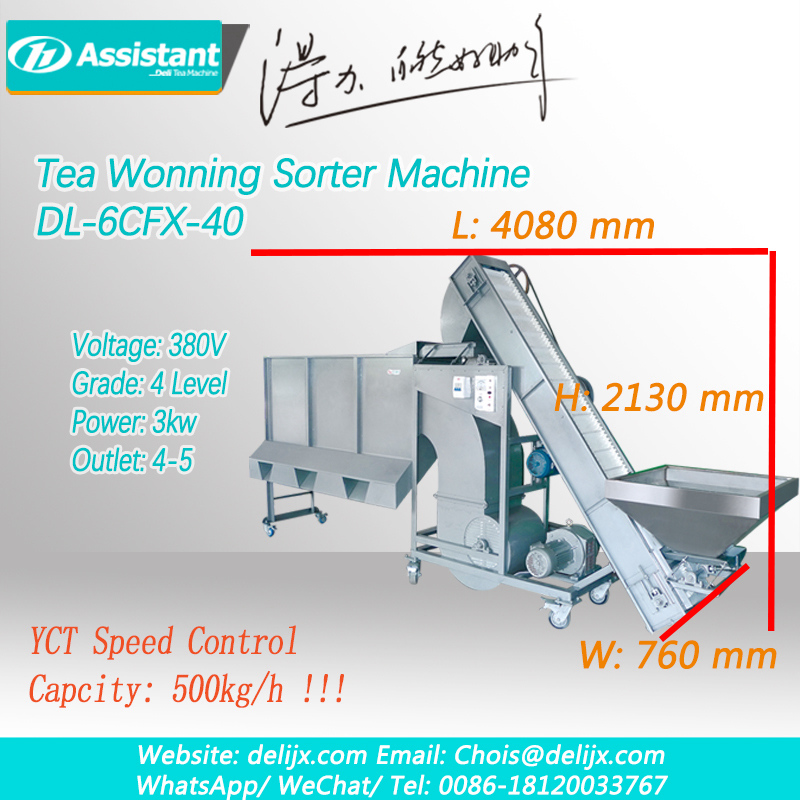

DL-6CFX-40 tea leaf winnowing sorter machine photos:

Finished Tea Leaf Winnowing Sorting Machine 6CFX-40


Finished Tea Leaf Winnowing Sorting Machine 6CFX-40


Finished Tea Leaf Winnowing Sorting Machine 6CFX-40


Finished Tea Leaf Winnowing Sorting Machine 6CFX-40


Tea Leaf Sorter Sorting Process Machine China Manufacturer 6CFX-40


Tea Leaf Sorter Sorting Process Machine China Manufacturer 6CFX-40
