Charcoal Heating Tea Baking Dryer Oven Machine 6CHTD-3F

DL-6CHTD-3F charcoal heating tea leaf baking dryer machine mainly used for black tea and other tea, make the finished tea leaf have
  • Item NO.:

    DL-6CHTD-3F
  • Brand:

    DELI ASSISTANT
  • Payment:

    T/T
  • Dimension:

    1060*650*1570 mm
  • Voltage:

    220V / 50Hz
  • Heating element:

    Charcoal heating, Electric auxiliary heat
  • Total drying area:

    3.9 m²
  • Drying layer:

    12 layers
  • Product Details

Description:
Charcoal Heating Tea Baking Dryer Oven Machine 6CHTD-3F intelligent eight-stage time and temperature control system, using charcoal constant temperature heating, electric-assisted heating (the first instantaneous point heating, more energy-saving), so that the combination of traditional and modern technology, so that tea fragrance more strong, the finished tea sell higher prices.

Application:
Wood and electric heating tea baking machine can use for many kinds tea, make the finished tea more fragrant, you can sell higher prices.

Advantage:
1. The world's first carbon heating and electric auxiliary heating system in tea processing industry;
2. To undertake traditional crafts, with modern equipment, the tea baked is more fragrant;
3. The baking temperature and combustion furnace temperature can be adjusted for different tea baking.

Parameter:
DL-6CHTD-3F wood coal and electric heating tea drying machine specification:

Model DL-6CHTD-3F
Dimension 1060*650*1570 mm
Voltage 220V / 50Hz
Heating type Charcoal heating,
Electric auxiliary heat
Drying area 3.9 m²
Drying layers 12 layers

Details:

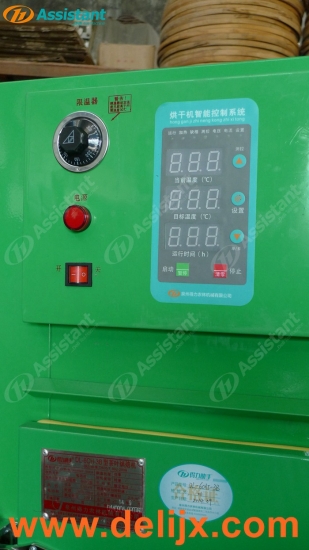

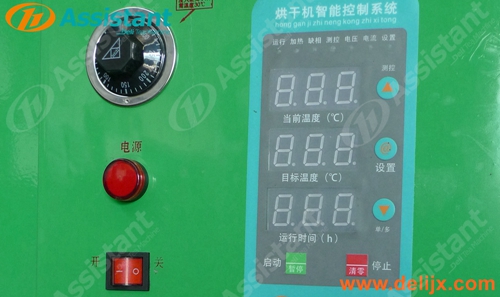

Intelligent temperature and time control system
Microcomputer temperature controller is adopted, keep the temperature difference below 1℃.
Add mechanical temperature limiting module to ensure precise temperature control.
The drying time is adjustable, alarm will be made at the end of drying ( can manually choose to turn on or off ).

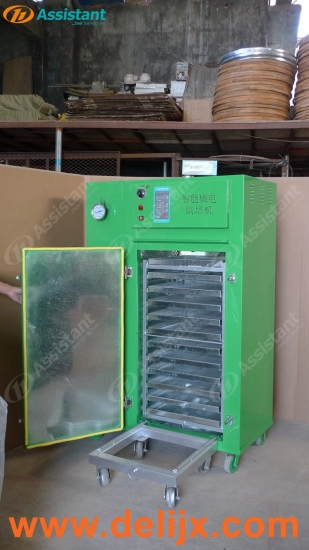

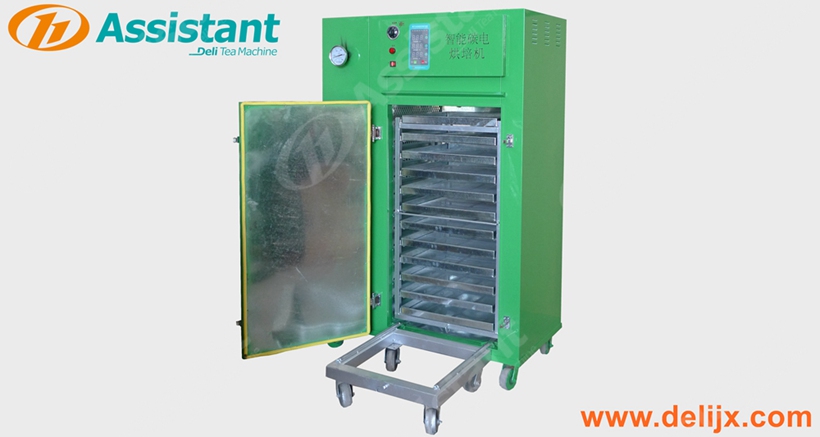

Charcoal Heating Tea Baking Dryer Oven Machine 6CHTD-3F

Charcoal Heating Tea Baking Dryer Oven Machine 6CHTD-3F
Charcoal Heating Tea Baking Dryer Oven Machine 6CHTD-3F

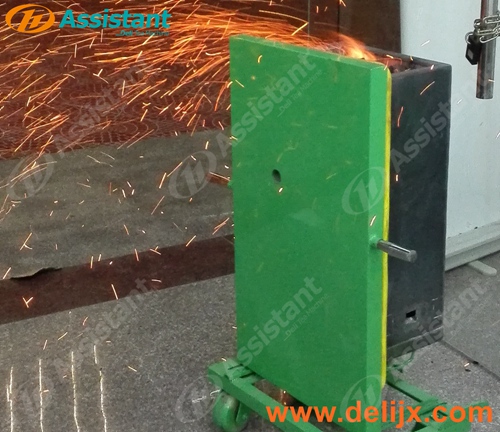

Charcoal burner

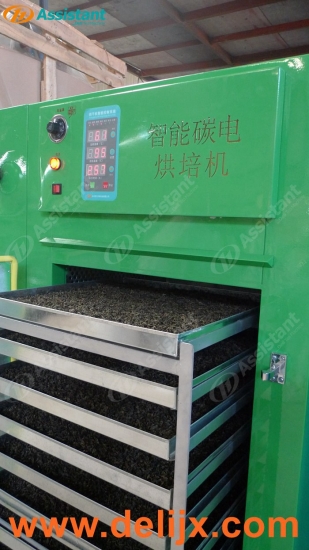

Observation window
Charcoal Heating Tea Baking Dryer Oven Machine 6CHTD-3F
Charcoal Heating Tea Baking Dryer Oven Machine 6CHTD-3F

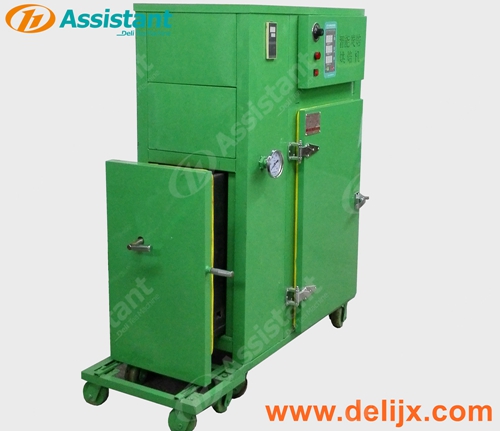

Side view

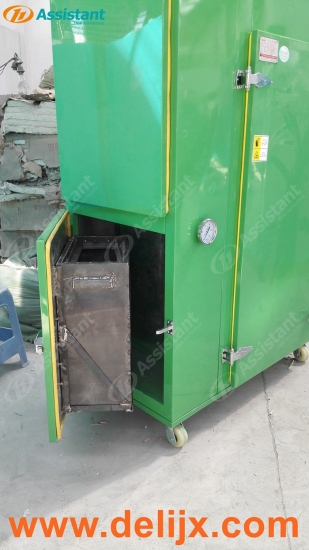

burner view
Black Tea Leaf Dryer Baking Machine Tea Drying Oven 6CHTD-3F
