Item NO.:
DL-6CYQT-90TBrand:
DELI ASSISTANTDimension:
3050×920×1350 mmVoltage:
380/50 V/HZBarrel diameter:
900 mmPower of drive motor:
0.75 kWSpeed of drive motor:
1400 r/minBarrel length:
2500 mmEfficiency:
120 Kg/h
| Description: |
| Application: |
| Advantage: |
| Parameter: |
| Model | DL-6CYQT-90T | ||
| Dimensions(L*W*H) | 3050×920×1350 mm | ||
| voltage / frequency | 380/50 V/HZ | ||
| Inner diameter of roller | 900 mm | ||
| Driving power | 0.75 kW | ||
|
Motor speed (YCT electromagnetic speed regulation) |
1400 r/min | ||
| Rated voltage | 380 V | ||
| Working speed of roller | 15-30 r/min | ||
| Length of roller | 2500 mm | ||
| Output（0.5h/times） | 120 Kg/h |
| Details: |
 |
Intelligent speed and time control system Adopting electromagnetic speed regulating motor, the speed is steady and durable. |
 |
 |
 |
|
Door with holes to facilitate discharge of debris. |
Bamboo skin products, clean and hygienic |
Four claw fixed, sturdy and durable |
 |
 |
|
Rotary buckle design, easy to use |
Internal strengthening ensures smooth operation. |

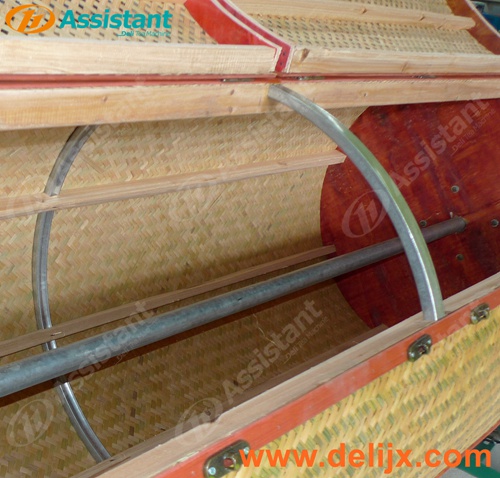

| DL-6CYQT-90T oolong tea shaking wither machine photos: |
 |
 |
 |
 |
 |
